King Pen Press

KPP-143 Series: Hydraulic

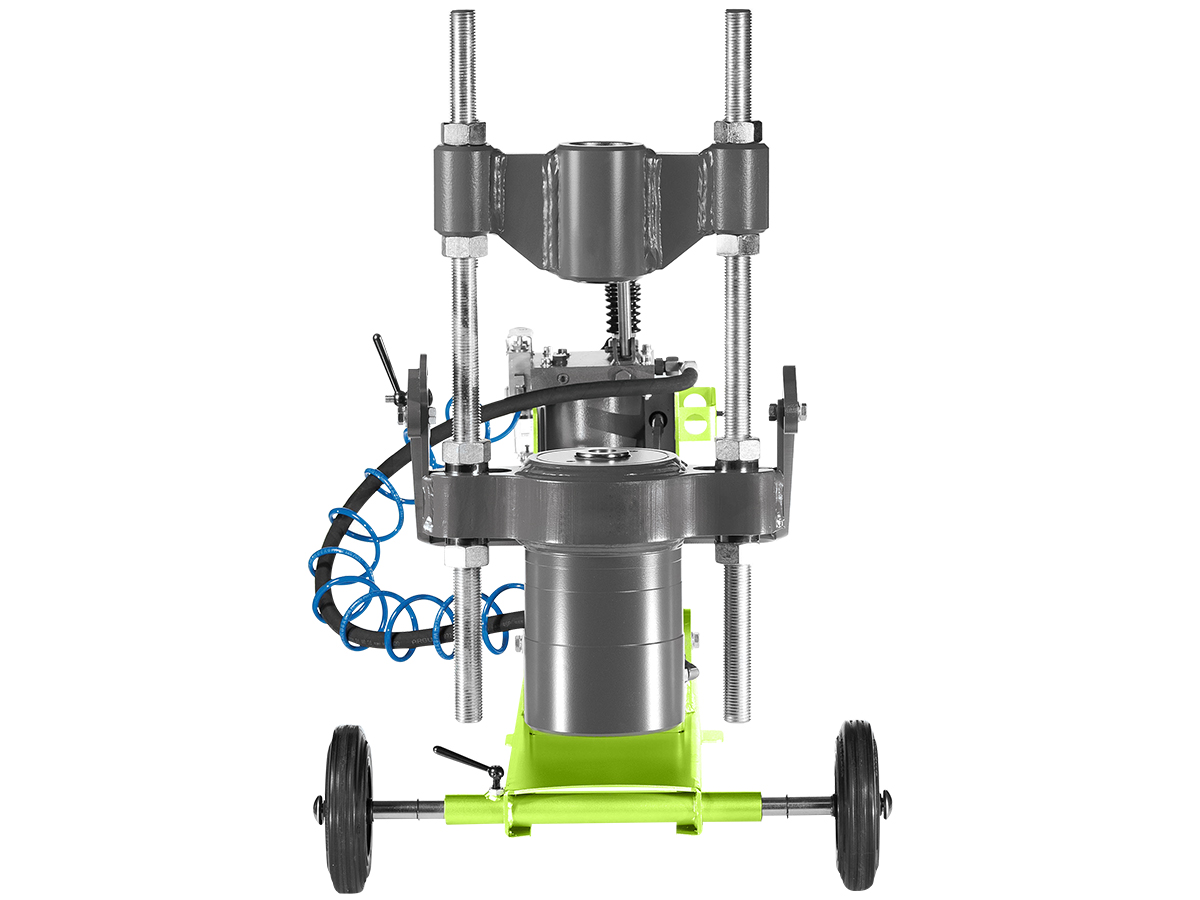

ARI-HETRA’s air-assisted and manual Model KPP-143 hydraulic King Pin Press uses 143,000 lbs. of compression force to easily press out heavy-duty steering knuckle king pins and spring pin bushings on trucks and buses. Its front-wheel dollies, adjustable press frame, and pneumatic lift and return stroke makes it easy to maneuver and set up around all potential obstacles.

Features

Front-wheel dolly for easy transport and positioning.
Tool kit equipped with various size support sleeves and mandrels.
Side-to-side and front-to-back adjustability and locking.
Hand crank for vertical adjustability and locking.
2 yokes that change clearance width between puller bolts.
Easy to use pneumatic lift and return stroke.
Responsive manual hand pump, for safe removal of hydraulic king pin.

Safety

Operates from safe distance.
Self-supported hydraulic press.
Drastically reduces potential of steering component damages.

Compression Force	143,000 lbs.
Clearance Between Puller Bolts	12 in.
Max Clearance Height	19 in.
Stroke	4.75 in.
Pressure	6,091 PSI
Air Supply	188 PSI
Weight	285 lbs.
