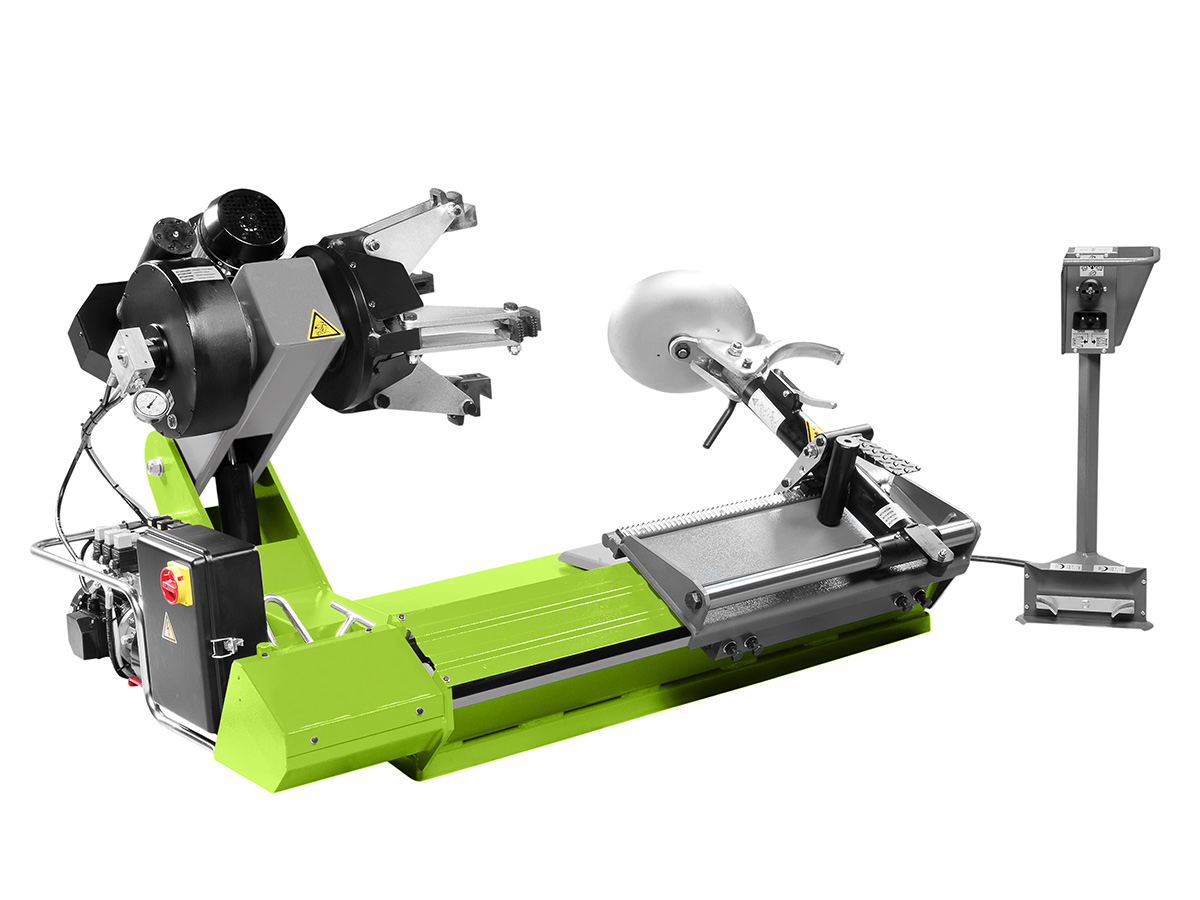

Tire Changer WS-12630
ARI-HETRA’s Model WS-12630 Heavy-Duty Electro-Hydraulic, Manual Tire Changer easily mounts and dismounts truck, bus, and super-single tires.

Features

  • 4-Claw Hydraulic Chuck.
  • Electro-hydraulic.
  • Manual tool arm and tool head.
  • Truck, bus, and super-single tires.
  • Wired remote control.
  • Trolley with hydraulic movement.

Chuck Rotation Motor3-4 HP
Hydraulic Drive Motor1.5 HP
Rim Diameter14 – 26 in.
Max Wheel Diameter63 in.
Max Wheel Width31 in.
Min Clamp Diameter3 in.
Max Wheel Weight3,086 lbs.
Chuck Rotation SpeedsSingle 6 RPM
Dimensions (LxWxH)73 in. x 71 in. x 49 in.
Power220V, 3-PH, 60 Hz
