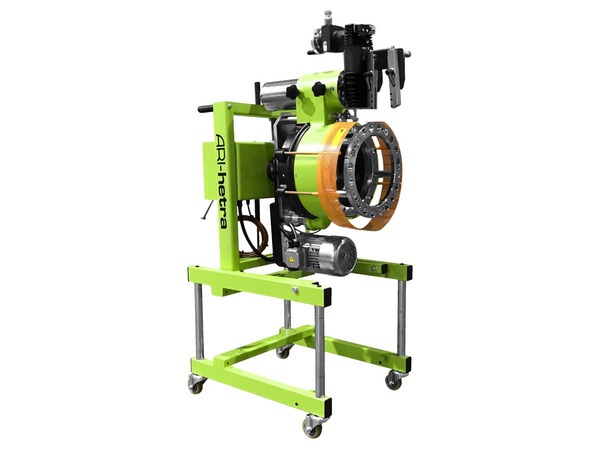

On Vehicle Disc Brake Lathe WS-BL44-T
ARI-HETRA’s Model WS-BL44-T (Lift Height Model) On Vehicle Heavy-Duty Brake Lathe is built for trucks, buses, and light commercial vehicles. The brake lathe operates directly on the vehicle without removing the rotor from the hub, saving you time and producing a truly aligned rotor. By turning rotors on the vehicle, you are able to accurately align to a real world situation.

Features

  • Intermittent feeding.
  • Motor with adjustment of spindle RPM.
  • Counter-balancing gas springs for easy adjustment.
  • Automatic cutting feeder.

Safety

  • Emergency stop button.

Included Accessories

  • Pair of cutting tools for discs.
  • Adapter ring for one bolt pattern.
Max Rotor Diameter19.5 in.
Min Rotor Diameter4.75 in.
Max Rotor Thickness2.5 in.
Spindle Speed35-90 RPM
Motor Power2 HP
Power220V, 60 Hz, 1-PH
