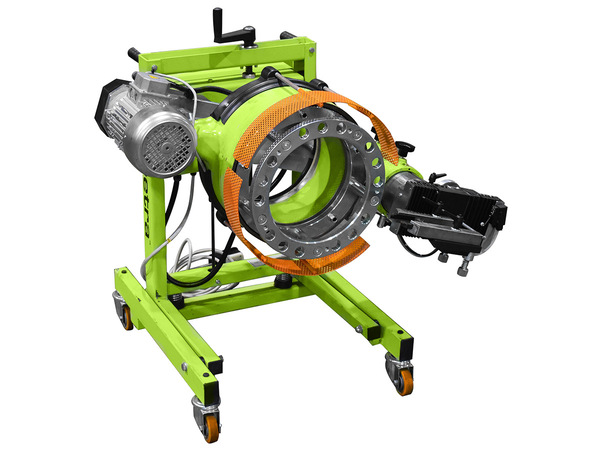

On Vehicle Disc Brake Lathe WS-BL44
ARI-HETRA’s Model WS-BL44 and WS-BL44-T (Lift Height Model) On Vehicle Heavy-Duty Brake Lathes are built for trucks, buses, and light commercial vehicles. This lathe operates directly on the hub of the vehicle saving you time and producing a truly aligned rotor.

Features

  • Intermittent feeding.
  • Motor with adjustment of spindle RPM.
  • Counter-balancing gas springs for easy adjustment.
  • Automatic cutting feeder.

Safety

  • Emergency stop button.

Included Accessories

  • Pair of cutting tools for discs.
  • Adapter ring for one bolt pattern.

Models Available

  • WS-BL44
  • WS-BL44-T (Lift Height Model)
Max Rotor Diameter19.5 in.
Min Rotor Diameter4.75 in.
Max Rotor Thickness2.5 in.
Spindle Speed35-90 RPM
Motor Power2 HP
Power220V, 60 Hz, 1-PH
